ENGINE & TRANSMISSION
|
|
Engine
|
YX | 4 Stroke
|
|
CC Rating
|
125cc
|
|
Gearbox
|
Manual | 4 Speed (N1234)
|
|
Starter
|
Kick
|
|
Carburetion
|
Molkt VM22 26mm
|
|
Exhaust
|
Pipebomb DW1 | 38mm Exhaust System
|
|
Final Drive
|
PSC 6 Bolt Sprocket | 428 HD Chain
|
|
Top Speed
|
90kph / 55mph (depending on gearing)
|
|
|
|
|
SUSPENSION, BRAKES, & WHEELS
|
|
Suspension Front
|
VS1 Inverted Forks | Length 770mm | 45/48mm Fork
|
|
Suspension Rear
|
VS1 Linkage U Shock | Length Adj 350mm (+10mm)
|
|
Brakes Front
|
220mm Disc | HSK Dual Piston
|
|
Brakes Rear
|
190mm Disc | HSK Single Piston
|
|
Wheel & Tire Front
|
7075 Alloy Rim | 70/100-14
|
|
Wheel & Tire Rear
|
7075 Alloy Rim w/ Rim Lock | 80/100-12
|
|
|
|
|
DIMENSIONS & WEIGHT
|
|

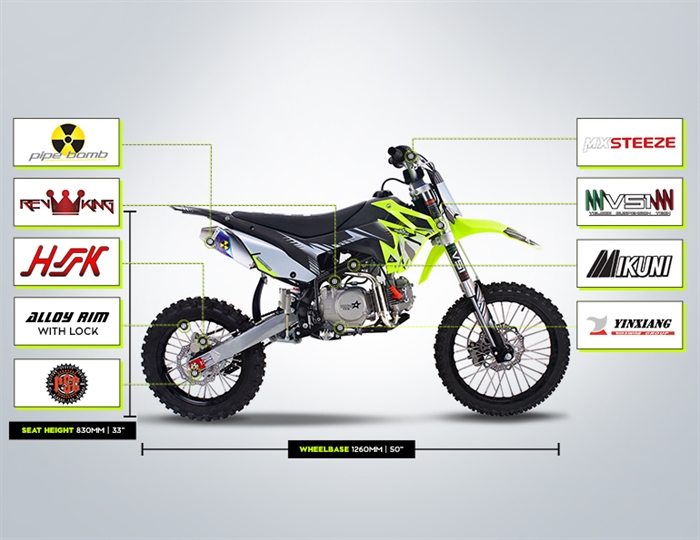

Wheelbase (axle to axle)
|
1260mm | 50"
|
|
Seat Height
|
830mm | 33"
|
|
Product Weight N.W | G.W
|
80/90 kg | 176/198 lbs
|
|
Tank Capacity
|
3.4 Litres | .9 Gallon
|
|
Product Packing Size
|
1420x430x640mm | .40m3
|
